Product Description

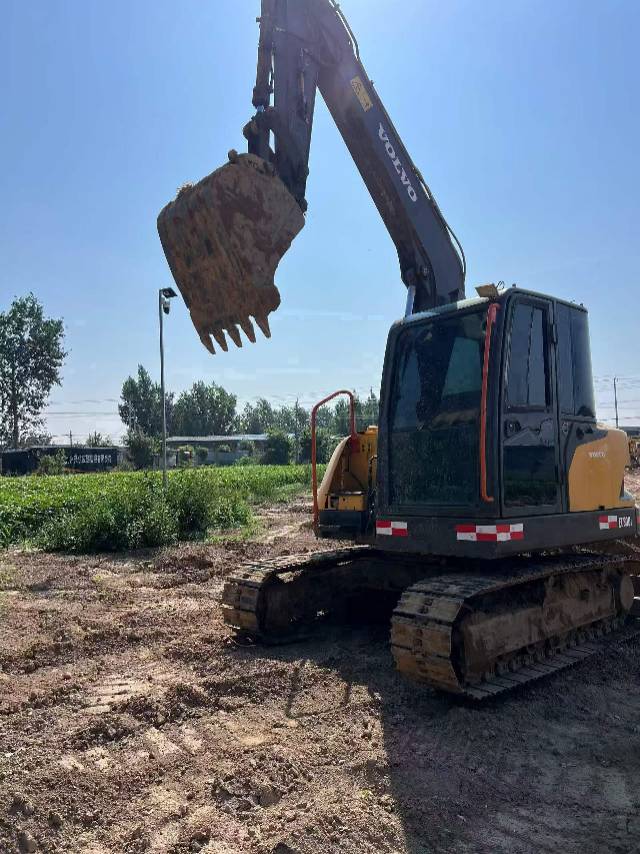

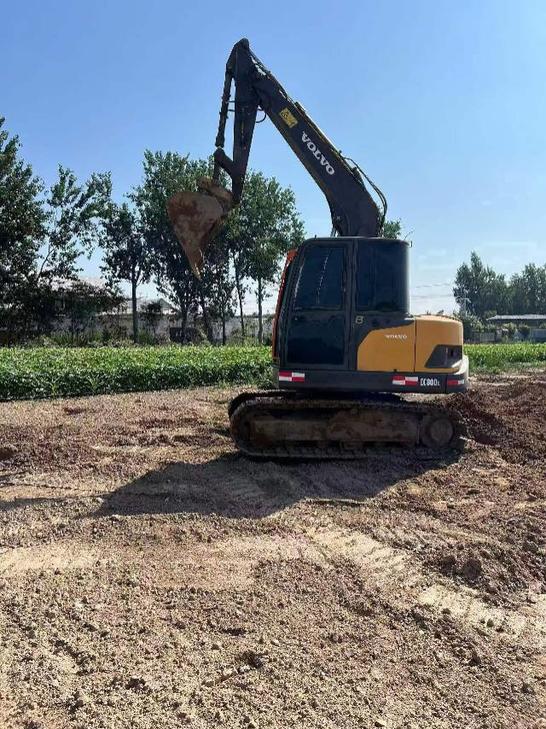

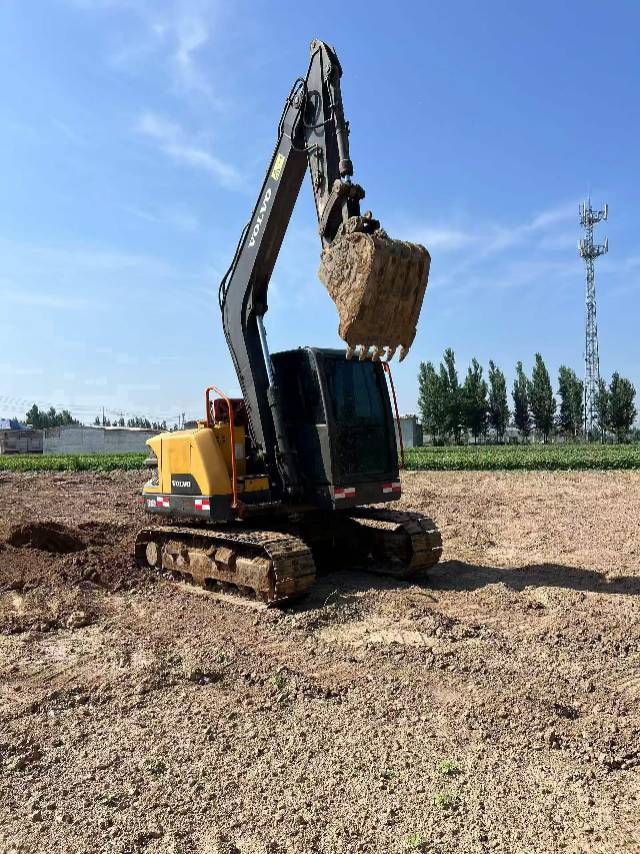

Discover the 2020 Volvo EC80D PRO, a premium compact excavator available in Shandong, China. This machine, previously owned by a private individual, is in excellent condition and comes equipped with a new quick coupler. The EC80D PRO is known for its smooth and coordinated operation, ensuring efficient performance on any job site. It demonstrates powerful low-speed travel capabilities, making it ideal for tasks that require precision and control. Additionally, the excavator can easily handle heavy loads even at idle speed, showcasing its robust engine and hydraulic systems. Ready for immediate inspection and testing, this Volvo EC80D PRO is a reliable choice for your construction needs.
- Year: 2020
- Brand: Volvo
- Model: EC80D PRO
- Location: Shandong, China
- Condition: Excellent, with new quick coupler
| Specifications | Value |
|---|---|
| No. | 1119634 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7,400 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D2.6D |
| Rated power (kw/rpm) | 43 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Maximum torque (N.m) | 225.8 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Turning torque (Nm) | 21.5 |
| Main overflow set pressure (Mpa) | 29.4 |
| Maximum flow of main pump (l/min) | 1 x 176 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Pilot pump flow (L/min) | 16 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 11.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2200 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Dodging plate width × height (mm) | 2300*470 |
| Maximum excavation radius of stop surface (mm) | 6270 |
